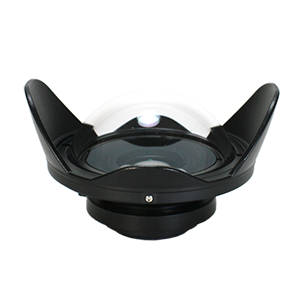

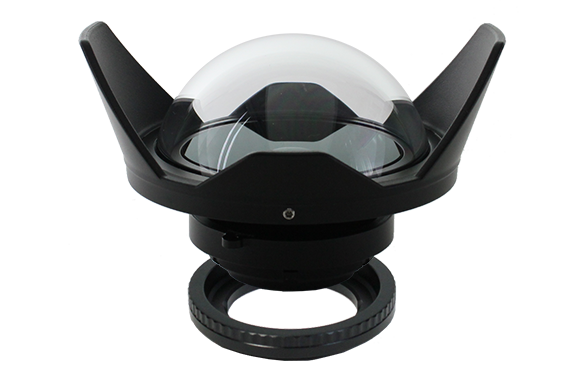

Fisheye Conversion Lens UWL-28M52MG

with Olympus housing

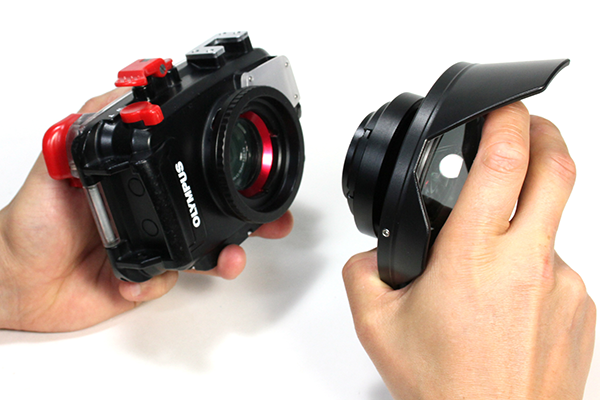

To quickly and simply attach and detach the lens

●The magnet mount of the exclusive design to improve quick response of the attaching and detaching drastically.
●When the focus distance uses it with a lens of 28mm(35mm size conversion), it becomes the angle of view of approximately 168 degrees.
●The lens is constructed in five multi-coating optical glass lenses and hard coating plastic dome. The distortion is corrected appropriately.
●UWL-28M52MG includes not only the super wide-angle lens fisheye photography but the focusing performance from the short distance suitable for wide macro photography.
●Attached food prevents flare and helps the protection of the lens.

recommended:Olympus PT-058/056, Nauticam TG5/TG3


Olympus TG-5+PT-058
NA Flexitray
NA Strobe Mounting Ball
NA Standard Clamp ×2
UL Arm Short
FIX M52 Lens Holder
FIX 2TU Kit
FIX Magnet Adapter
M52UWL28H
FIX NEO 4030 EF II


With UWL-28M52
Distance: 1m
To improve the color reproducibility and more perspective image.
Without UWL-28M52
Distance: 1m
Get too close...
Without UWL-28M52
Distance: 3m
You should keep distance from the subject. It's a flat and poor color...

Specifications


Construction 5 groups, 5 elements
Magnification 0.41x
Body material Corrosion resistant aluminum alloy
Size 126dia x 85mm
Weight (in air) 626g
Weight (underwater) 222g
Depth rating 60m/200ft
Lens Mount Magnet mount
Bundled items Lens hood, Magnet Adapter M52UWL28H, Allen wrench, Dome lens cover, Strap

Optional


#21062

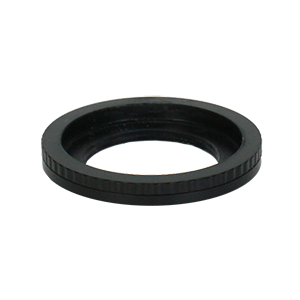

FIX Magnet Adapter M52UWL28H
extra ring for lens port/lens holder
#40238
FIX M52 Lens Holder
#40003
FIX 2TU Kit
