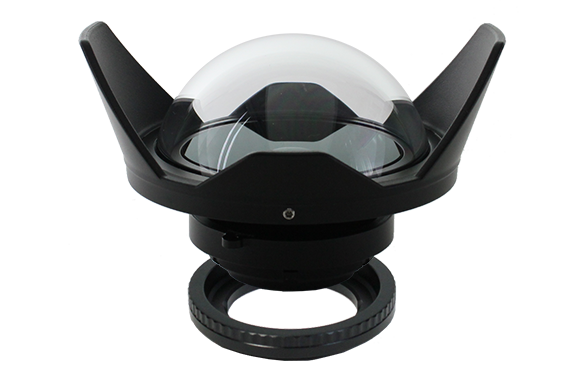

FIX Fisheye Conversion Lens UWL-28M52MG


with Olympus housing

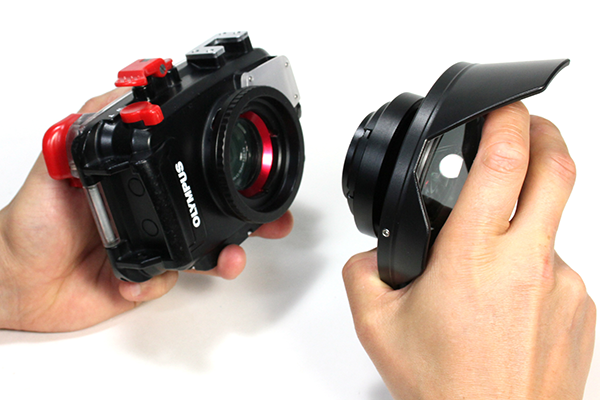

To quickly and simply attach and detach the lens

●The magnet mount of the exclusive design to improve quick response of the attaching and detaching drastically.
●When the focus distance uses it with a lens of 28mm(35mm size conversion), it becomes the angle of view of approximately 168 degrees.
●The lens is constructed in five multi-coating optical glass lenses and hard coating plastic dome. The distortion is corrected appropriately.
●UWL-28M52MG includes not only the super wide-angle lens fisheye photography but the focusing performance from the short distance suitable for wide macro photography.
●Attached food prevents flare and helps the protection of the lens.

recommended:Olympus PT-058/056, Nauticam TG5/TG3

Olympus TG-5+PT-058
NA Flexitray
NA Strobe Mounting Ball
NA Standard Clamp ×2
UL Arm Short
FIX M52 Lens Holder
FIX 2TU Kit
FIX Magnet Adapter
M52UWL28H
FIX NEO 4030 EF II

With UWL-28M52

Distance: 1m
To improve the color reproducibility and more perspective image.

Without UWL-28M52


Distance: 1m
Get too close...

Without UWL-28M52


Distance: 3m
You should keep distance from the subject. It's a flat and poor color...

Specifications

Construction
5 groups, 5 elements
Magnification
0.41x
Body material
Corrosion resistant aluminum alloy
Size
126dia x 85mm
Weight in Air
626g
Weight underwater
222g
Depth rating
60m/200ft
Lens Mount
Magnet mount
Bundled items
Lens hood, Magnet Adapter M52UWL28H, Allen wrench, Dome lens cover, Strap

Note: Vignetting may occur depending on the housing. Please use it on this occasion at the zoom position where it dissolves.

Optional

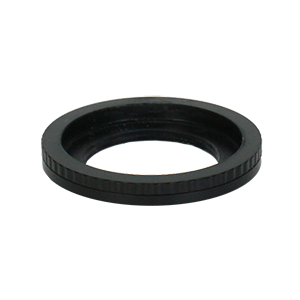

FIX Magnet Adapter M52UWL28H
extra ring for lens port/lens holder


FIX M52 Lens Holder


FIX 2TU Kit
